The Humanex-TECH Ltd. is the sole distributor of Hughes Pumps in Hungary and the Balkan region.

Hughes Pumps Limited is a privately owned company from the United Kingdom since 1970. They are specialized in the high pressure pumps and accessories. Their pumps have the same quality as the biggest companies in the market, but in much more suitable price.

HPS5000

HIGH PRESSURE QUINTUPLEX PUMP

Max. Flowrate
Max. Pressure
Max. Power
806 lpm at 250 bar
1400 bar at 141 lpm
375 kW (500 hp)

The most powerful pump in the Hughes range, the HPS5000 has a specification producing a heavy duty capability for dealing with the more difficult problems in industry and shares critical components with the smaller HPS3000 pump. The 5 cylinder build has an inherently smooth flow characteristic – flow variation is reduced to less than a third when compared to the more common triplex arrangement.

The close coupled, gear driven power end has pressure lubrication, filtration and oil cooling. An SAE 1 adaptor housing is available enabling the pump to be flange mounted to a diesel engine flywheel housing ensuring extremely compact, perfectly aligned installations and enclosing all moving parts.

For maximum hydraulic efficiency, the in-line valve arrangement is designed to minimise the internal losses and prevents the adverse effects of cyclic stress within the head block, while allowing all working components to be easily removed on site for service.

This improved design is capable of high pressure to high volume with outstanding seal, plunger and valve life.

Features

  • 5 cylinders for smooth output
  • 431 stainless steel pump head
  • Solid ceramic plungers & self adjusting seals
  • Interchangeable plunger kits
  • SG iron crankcase with pressure lubrication, filtration and oil cooling
  • Gear driven, eliminating the need for belt drive
  • Safety relief valve
  • Pressure gauge

Bulild Options

  • 316 stainless/Duplex steel pump head for seawater applications
  • Choice of gear ratio to suit diesel engine or electric motor drive
  • SAE 1 adaptor housing for flange mounting the pump to a diesel engine flywheel housing
  • Unloader valves
  • Pressure adjusting valves (manual or actuated)
  • Selector / Diverter valves (manual or actuated)
  • Bare shaft pump only or complete unit build
  • ATEX compliant
Plunger Diameter mmGear ratio Input Speed (rpm)
1500
Gear ratio Input Speed (rpm)
1800
Gear ratio Input Speed (rpm)
2050
Pump Speed
rpm
Power Required
kW
Power Required
HP
Nominal Flowrate
lpm
Nominal Flowrate
igpm
Nominal Flowrate
usgpm
Max Pressure
bar
Max Pressure
psi
305.1329226936010322.727.4140020.300
5.1335132243212427.332.9
4.1136533544912928.434.2
5.1340036749214131.137.4
355.1329230040214130.937.3115016.675
5.1335136048316937.144.7
4.1136537550217538.646.5
385.1329230841316636.543.9100014.500
5.1335136949519943.852.7
4.1136538451520745.554.9
405.1329230741118440.448.790013.050
5.1335136849422048.558.4
4.1136538351322950.460.7
455.1329230240523251.161.670010.150
5.1335136348627961.473.9
4.1136537750629063.876.9
505.1329230440728763.176.15708.265
5.1335136448834475.891.3
4.1136537950835878.894.9
555.1329230340634776.492.14706.815
5.1335136448841791.7110.5
4.1136537850743495.4114.9
605.1329230741141390.9109.64005.8
5.13351368494496109.1131.5
4.11365383514516113.5136.7
655.13292311417485106.7128.63455.003
5.13351373500582128.1154.3
4.11365388520606133.2160.5
705.13292303406563123.8149.12904.205
5.13351364487675148.5178.9
4.11365378507702154.5186.1
755.13292300402646142.1171.22503.625
5.13351360482775170.5205.4
4.11365374502806177.4213.7

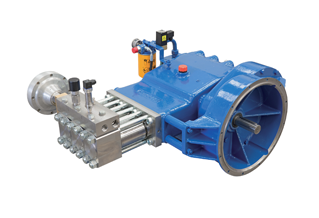

Ultrabar 30

UHP Triplex Pump

Max. Flowrate
Max. Pressure
Max. Power
45 lpm at 2000 bar
3000 bar at 30 lpm
170 kW (228 hp)

The Ultrabar 30 model is ideal for single or twin gun applications.

The close coupled, gear driven power end has pressure lubrication, filtration and oil cooling. SAE adaptor housings are available enabling the pump to be flange mounted to a diesel engine flywheel housing or electric motor ensuring extremely compact, perfectly aligned installations and enclosing all moving parts.

The Ultrabar range of pumps include design features that allow seals and valves to be monitored without tools and maintenance on individual cylinders.
This improved design is capable of Ultra High Pressure with outstanding seal, plunger and valve life.
The pump can be converted to High Pressure (HP) by changing the plunger kit and pumphead.

Note:


The Ultrabar 30 pump can be converted to a High Pressure (HP) HPS2200 pump by changing plungers and pumphead. Performances for 24 & 30mm plungers are shown below, up to55mm plungers can be fitted.

Features

  • Solid ceramic plungers with floating crosshead attachment
  • Self adjusting seals with internal water cooling
  • Hardened, alloy steel crankshaft with heavy duty roller and steel backed white metal main bearings, supported between each connecting rod
  • SG iron crankcase with pressure lubrication, filtration and oil cooling
  • Forged connecting rods with low friction, shell type big end bearings and lead bronze lined small end bushes
  • Gear driven, eliminating the need for belt drive
  • Burst disc for overpressure protection

Bulild Options

  • Choice of gear ratio to suit diesel engine or electric motor drive
  • SAE adaptor housings (SAE 2or 3) for flange mounting the pump to a diesel engine flywheel housing or electric motor
  • Available without gearbox for low speed direct drive
  • Dump valves
  • Pressure adjusting valves
  • Bare shaft pump only or complete unit build
  • ATEX compliant
  • Conversion kits for High Pressure (HP)

Ultrabar30
UHP Triplex Pump

Plunger Diameter mmGear ratio Input Speed (rpm)
1500
Gear ratio Input Speed (rpm)
1800
Gear ratio Input Speed (rpm)
2000
Gear ratio Input Speed (rpm)
2200
Pump Speed rpmPower Required
kW
Power Required
HP
Nominal Flowrate
lpm
Nominal Flowrate
igpm
Nominal Flowrate
usgpm
Max Pressure
bar psi

4.50333113152204.55.443.5
5.71350119160214.75.7
5.71385131175245.26.2
184.50400136182245.46.53000
3.70405138185255.46.6
4.50444151202276.07.2
3.70486165222306.57.9
4.50489166223306.67.9
4.50333112150255.56.734.8
5.71350118158265.87.0
5.71385129174296.47.7
204.50400134180306.68.02400
3.70405136183316.78.1
4.50444149200347.48.9
3.70486163219378.19.7
4.50489164220378.19.8
4.50333113151306.78.129
5.71350119159327.08.5
5.71385130175357.79.3
224.50400135182368.09.72000
3.70405137184378.19.8
4.50444151202418.910.7
3.70486165221449.811.8
4.50489166222459.811.8

The Ultrabar 30 pump can be converted to a High Pressure (HP) HPS2200 pump by changing plungers and pumphead. Performances for 24 & 30mm plungers are shown below, up to55mm plungers can be fitted.

HPS2200
High Pressure Triplex Pump

Plunger Diameter mmGear ratio Input Speed (rpm)
1500
Gear ratio Input Speed (rpm)
1800
Gear ratio Input Speed (rpm)
2000
Gear ratio Input Speed (rpm)
2200
Pump Speed rpmPower Required
kW
Power Required
HP
Nominal Flowrate
lpm
Nominal Flowrate
igpm
Nominal Flowrate
usgpm
Max Pressure
bar psi

4.533394126368.09.620.3
245.7135099133388.410.1
5.71385109146429.211.1
4.50400113151439.611.51400
3.70405114153449.711.7
4.504441251684810.612.8
3.704861371845311.614.0
4.504891381855311.714.1
4.503331051415712.415.0
5.713501101485913.115.7
5.713851211636514.417.3
304.504001261696814.918.0100014.5
3.704051281716915.118.2
4.504441401887516.620.0
3.704861532058318.121.9
4.504891542068318.222.0

DESIGNED TO 0-24H WORK

Hardened, alloy steel crankshaft with heavy duty steel backed white metal main bearings, supported between each connecting rod.

Personal meeting request
get More information by email

“THE RIGHT TOOLS ARE HALF THE JOB.”

PRODUCTS

HPS400

Flowrate
Pressure
Power
103 lpm at 160 bar
1000 bar at 16 lpm
30 kW (40 hp)

HPS650

Flowrate
Pressure
Power
103 lpm at 250 bar
1000 bar at 27 lpm
48 kW (65 hp)

HPS1000

Flowrate
Pressure
Power
177 lpm at 220 bar
1400 bar at 28 lpm
75 kW (100 hp)

HPS2200

Flowrate
Pressure
Power
279 lpm at 310 bar
1400 bar at 53 lpm
160 kW (220 hp)

HPS3000

Flowrate
Pressure
Power
484 lpm at 250 bar
1400 bar at 84 lpm
225 kW (300 hp)

HPS5000

Flowrate
Pressure
Power
806 lpm at 250 bar
1400 bar at 141 lpm
375 kW (500 hp)

Ultrabar 10

Flowrate
Pressure
Power
10,3 lpm at 2600 bar
2600 bar at 10,3 lpm
48 kW (65 hp)

Ultrabar 15

Flowrate
Pressure
Power
13,8 lpm at 2750 bar
2750 bar at 13,8 lpm
75 kW (100 hp)

Ultrabar 30

Flowrate
Pressure
Power
45 lpm at 2000 bar
3000 bar at 30 lpm
160 kW (220 hp)

ACCESSORIES

General Water Jetting Accessories

  • Accessories for surface cleaning & cutting
  • Accessories for pipe cleaning
  • Miscellaneous

Specialist Water Jetting PPE

  • Rated to 2800bar (40,000psi)
  • One size fits all
  • Open back to keep operators cool
  • Modular design with replacement panels

Pump Ancillary
Equipment

  • Flexible drive coupling
  • Boost pump
  • Water filters
  • Boost pressure switch
  • Pump oil temperature and pressure switch
  • HP control valves

High Pressure
Hosereels

  • Heavy duty rolled drum in thick section with supports
  • Manual or hydraulic wound
  • Rated up to 1000bar (14,500psi)
  • Flowrates up to 800lpm
  • Through feed rotary coupling
  • The drum can be locked to prevent rotation

CONTROL VALVES

Dump / Selector Valves

Safety Valves

Diverter Valves

Manual Pressure Adjusting Valves
