THE UNIQUE TECHNOLOGY FOR URBAN PIPE REPLACEMENT PROJECTS
NO-DIG TECHNOLOGY
STATIC PIPEBURSTING
Pipe bursting can save contractors and pipeline owners a considerable time and money when it comes to replacing water, gas, sewerage pipelines to residential and industrial areas. Pipe bursting fractures a pipe from the inside and forces the fragments outwards while a new pipe is drawn in to replace the old.
Trenchless rehabilitation methods are generally more cost-effective than traditional exhume (dig) and replace methods.
CONVENTIONAL PIPEBURSTING
The most comprehensive range of static pipebursting machinery, for the trenchless industry. From specialized micro machinery designed to operate in 1 meter vertical shafts, up to 400 metric tons – pulling Ø1500 mm pipes.
• Two open excavations
• Equipment is positioned in one excavation
• Rods are pushed up through the existing pipe
• The new pipe is pulled in from the opposite end, by use of the mentioned rods
COST SAVING
• Much faster & safer method
• Not necessary to rebuild the road
• No need to move surrounding utilities
• Reduces social costs and traffic disruption
• No cut-through risk for the utility wires and pipes
• Ability to increase the size of the existing service
• Less design time and service relocation costs
• Reduces excavation costs up to 90%
• No digging, no trench needed
• Less manpower needed
• Much faster & safer method
• Not necessary to rebuild the road
• No need to move surrounding utilities
• Reduces social costs and traffic disruption
• No cut-through risk for the utility wires and pipes
• Ability to increase the size of the existing service
• Less design time and service relocation costs
• Reduces excavation costs up to 90%
• No digging, no trench needed
• Less manpower needed
• Much faster & safer method
• Not necessary to rebuild the road
• No need to move surrounding utilities
• Reduces social costs and traffic disruption
• No cut-through risk for the utility wires and pipes
• Ability to increase the size of the existing service
• Less design time and service relocation costs
• Reduces excavation costs up to 90%
• No digging, no trench needed
• Less manpower needed
SHAFT TO SHAFT TECHNOLOGY
BY USING MICRO EQUIPMENT
The unique solution for the pipeline replacement projects in the urban area. Our micro machines can be inserted perfectly into the shaft.
• No digging is needed
• Equipment is positioned in one shaft / manhole
• Rods are pushed up through the existing pipe
• The new pipe is pulled in from the second shaft

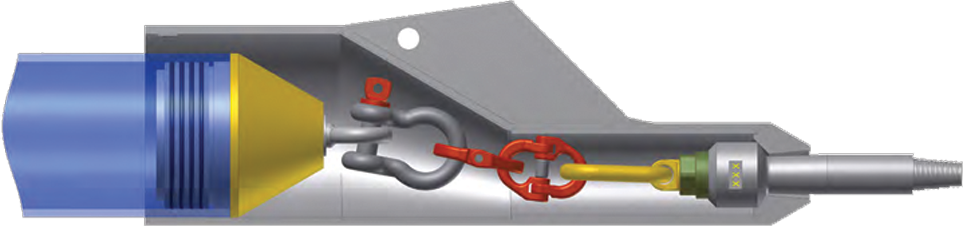

CUTTING HEAD
• High-grade steel rod system
• Highest industry safety margin, based on certified thread design
• Simple and flexible bursting head assembly
• Two simple head design for all type of existing pipes
• Steel, Cast Iron, Ductile Iron
• Concrete, Re-enforced concrete, Clay, Asbestos, Ceramic, PVC, HDPE, PP
PRODUCTS
Shaft to Shaft operation
Trench to Trench operation

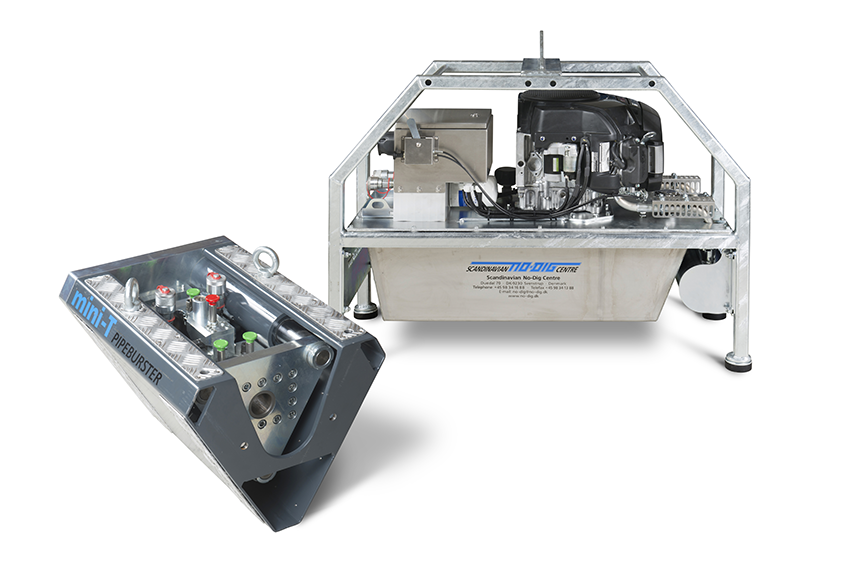

mini – T
37 metric tons pulling force |
58 x 44 x 48 cm |
158 kg |
Vanguard Petrol Air cooled 22 hp / 16,40 kW Electric Start |
3 cylinders for hydraulic system |
Speed up to 1 m / min, stroke 10cm |
Range Ø50 – 250 mm |
Shaft to Shaft operation |
maxi – T
60 metric tons pulling force |
73 x 54 x 58 cm |
380 kg |
Vanguard Petrol Air cooled 22 hp / 16,40 kW Electric Start |
3 cylinders for hydraulic system |
Speed up to 1 m / min, stroke 10cm |
Range Ø90 – 450 mm |
Shaft to Shaft operation |
T47
47 metric tons pulling force |
160 x 45 x 50 cm |
600 kg |
3 -cyl. diesel water cooled 25 hp / 18,60 kW diesel capacity: 25 liter |
3 cylinders for hydraulic system |
Speed up to 1 m / min, stroke 50 cm |
Range Ø50 – 250 mm |
Shaft to Shaft operation |
T87
87 metric tons pulling force |
180 x 65 x 72 cm |
1600 kg |
3 -cyl. diesel water cooled 25 hp / 18,60 kW diesel capacity: 25 liter |
3 cylinders for hydraulic system |
Speed up to 1 m / min, stroke 50 cm |
Range Ø90 – 400 mm |
Trench to Trench operation |
T247
247 metric tons pulling force |
222 x 110 x 115 cm |
4000 kg |
6 -cyl. diesel water cooled intercooled & turbo 180 hp / 135 kW diesel capacity: 300 liter |
3 cylinders for hydraulic system |
Speed up to 1 m / min, stroke 50 cm |
Range Ø 150 – 800 mm |
Trench to Trench operation |
T400
400 metric tons pulling force |
350 x 140 x 200 cm |
12000 kg |
6 -cyl. diesel water cooled intercooled & turbo 180 hp / 135 kW diesel capacity: 300 liter |
3 cylinders for hydraulic system |
Speed up to 1 m / min, stroke 50 cm |
Range Ø 200 – 1500 mm |
Trench to Trench operation |
PRODUCTS
Shaft to Shaft operation
mini – T
Pulling Force: | 37 metric tons |
Sizes: | 58 x 44 x 48 cm |
Weight: | 158 kg |
Engine: | Vanguard Petrol Air cooled 22 hp / 16,40 kW Electric Start |
Hydraulic System: | 3 cylinders |
Operational Speed: | up to 1 m / min, stroke 10cm |
Operational Range: | Ø50 – 250 mm |
Operation: | Shaft to Shaft |
maxi – T
Pulling Force: | 60 metric tons |
Sizes: | 73 x 54 x 58 cm |
Weight: | 380 kg |
Engine: | Vanguard Petrol Air cooled 22 hp / 16,40 kW Electric Start |
Hydraulic System: | 3 cylinders |
Operational Speed: | up to 1 m / min, stroke 10cm |
Operational Range: | Ø90 – 450 mm |
Operation: | Shaft to Shaft |
Trench to Trench operation
T47
Pulling Force: | 47 metric tons |
Sizes: | 160 x 45 x 50 cm |
Weight: | 600 kg |
Engine: | 3 -cyl. diesel water cooled 25 hp / 18,60 kW diesel capacity: 25 liter |
Hydraulic System: | 3 cylinders |
Operational Speed: | up to 1 m / min, stroke 50cm |
Operational Range: | Ø50 – 250 mm |
Operation: | Trench to Trench |
T87
Pulling Force: | 87 metric tons |
Sizes: | 180 x 65 x 72 cm |
Weight: | 1600 kg |
Engine: | 3 -cyl. diesel water cooled 25 hp / 18,60 kW diesel capacity: 25 liter |
Hydraulic System: | 3 cylinders |
Operational Speed: | up to 1 m / min, stroke 50cm |
Operational Range: | Ø90 – 400 mm |
Operation: | Trench to Trench |
T247
Pulling Force: | 247 metric tons |
Sizes: | 222 x 110 x 115 cm |
Weight: | 4000 kg |
Engine: | 6 -cyl. diesel water cooled intercooled & turbo 180 hp / 135 kW diesel capacity: 300 liter |
Hydraulic System: | 3 cylinders |
Operational Speed: | up to 1 m / min, stroke 50cm |
Operational Range: | Ø150 – 800 mm |
Operation: | Trench to Trench |
T400
Pulling Force: | 400 metric tons |
Sizes: | 350 x 140 x 200 cm |
Weight: | 12000 kg |
Engine: | 6 -cyl. diesel water cooled intercooled & turbo 180 hp / 135 kW diesel capacity: 300 liter |
Hydraulic System: | 3 cylinders |
Operational Speed: | up to 1 m / min, stroke 50cm |
Operational Range: | Ø200 – 1500 mm |
Operation: | Trench to Trench |
