BUNDLE EXTRACTING

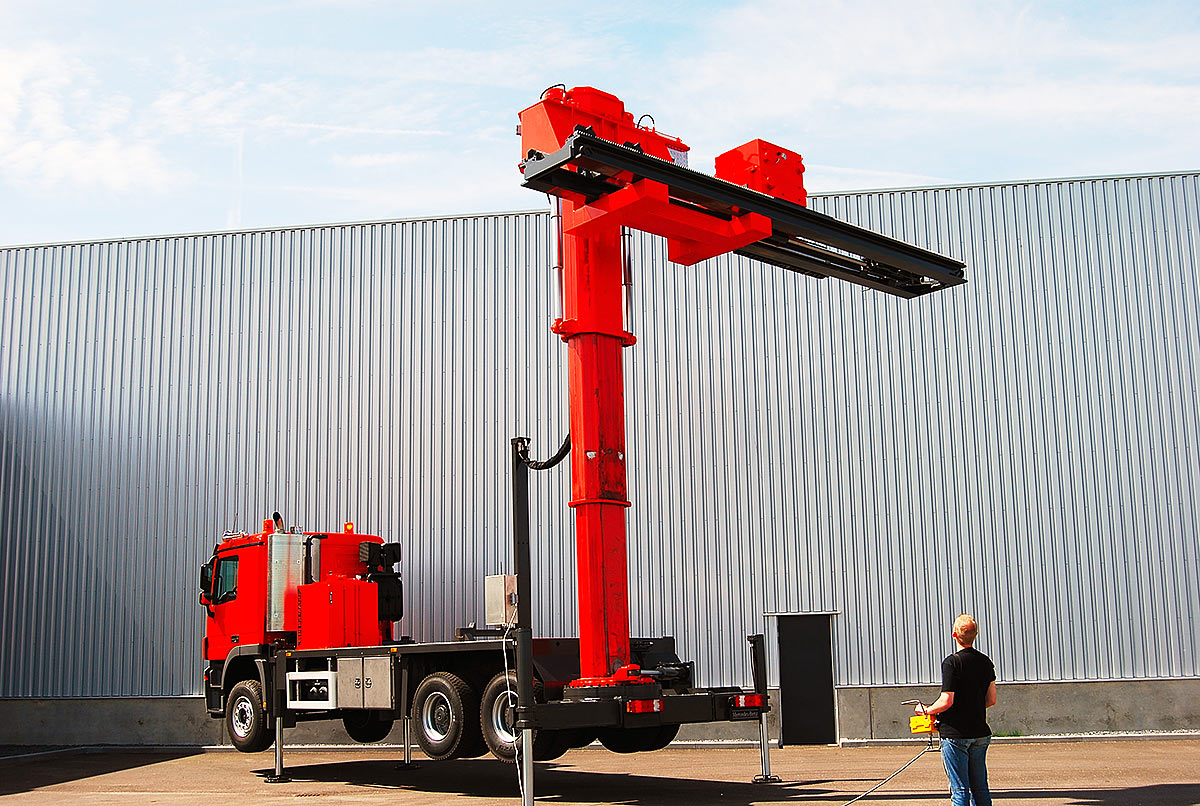

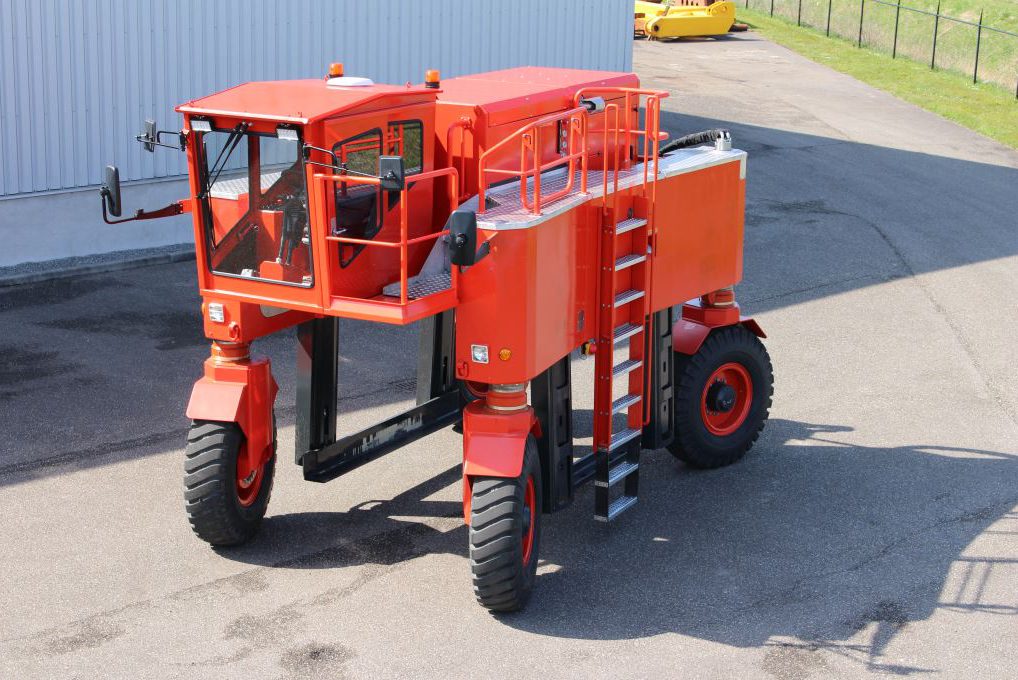

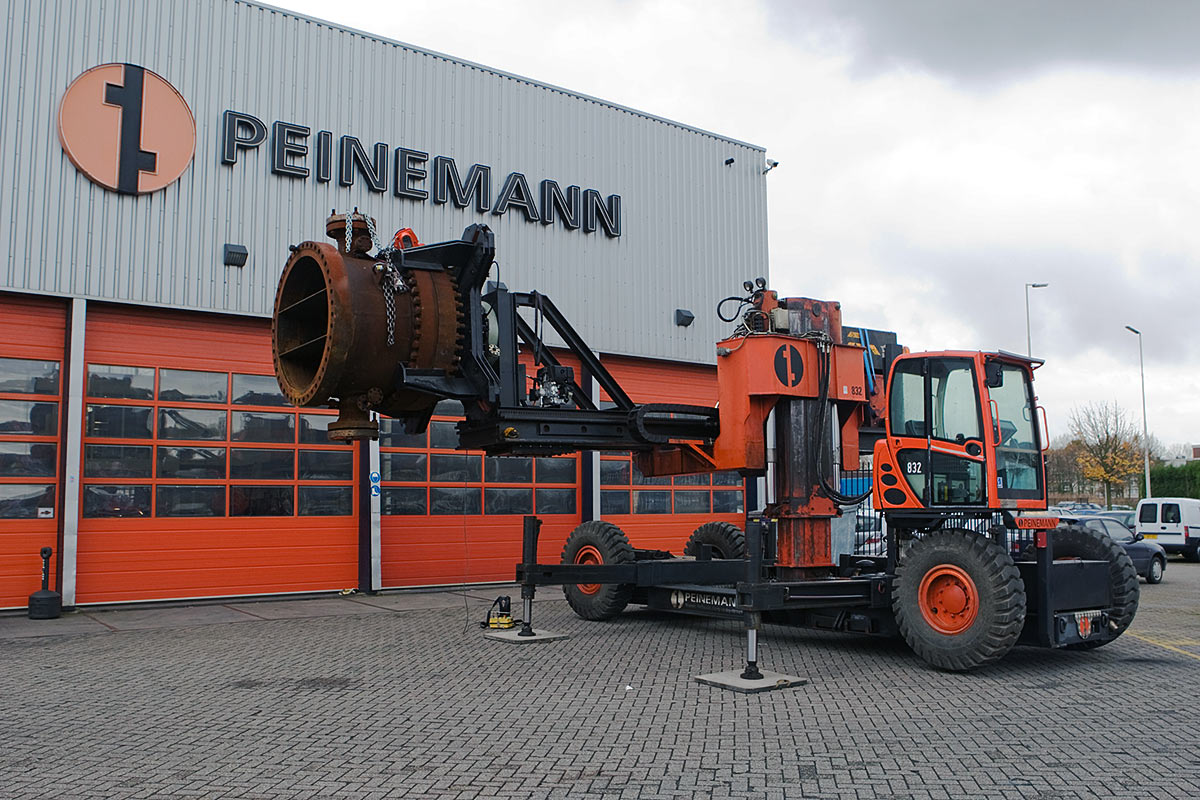

Peinemann has a full range of aerial bundle extractors to be used with a crane, from 25t to 125t, with lengths of 6m to 14.5m. Peinemann also supply mobile extractors fitted on a truck, which can drive on public roads and handle bundles of 20t (maximum) up to 7.5m, as well as self-propelled extractors with a maximum capacity of 25t, which are built especially for tight areas and low height applications.

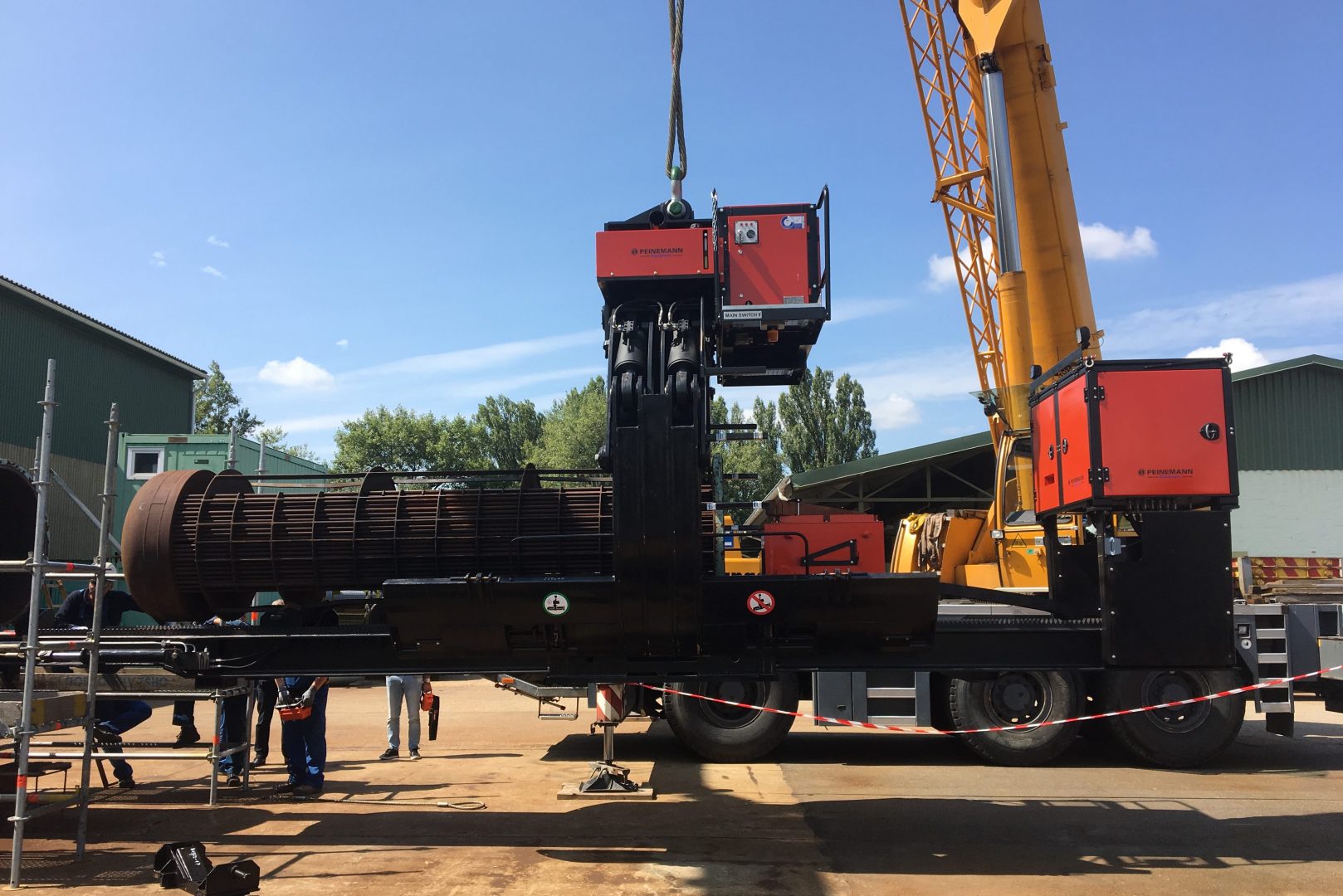

The Aerial Tube Bundle Extractor is a self contained unit, which is easily lifted into position by just one crane and can be operated by remote control. Because the unit is equipped with a small diesel engine, it can work independently at any place. The Extractor is standard equipped with a spark arrestor and it can even be equipped with a chalwin valve to make it possible to work even in dangerous areas. Extractor is shorter and lighter weight than other extractors allowing for increased manoeuvrability

Narrow superstructure allowing deep penetration to access hard to reach bundles.

The standard extractor is 8.00m in length and weighs 8,5T. It is suitable for use on all plate and tube heat exchangers up to 2.00m diameter and a maximum bundle weight of 45T. In case you might need a bigger or a smaller extractor, Peinemann can also make custom made extractors to suit your needs.

Rack and pinion driven hydraulic car extracts bundle in one continuous pull while other extractors pull with numerous strokes of a hydraulic cylinder which is time consuming. All functions are operated by remote control, so operator can stand away especially during initial break out. Other extractors have all controls fixed to the front of the extractor superstructure and the operator is standing in the most dangerous position.

Bundle extraction time is 15 minutes.

The Aerial Tube Bundle Extractor uses a special lifting frame, which is constructed in such a way that it has a maximum reach into the construction. The load is trimmed using a Aerial balancing cylinder which makes it also easy to off load the bundles when the extractor is put down on the ground. Due to the use of a pulling hook mechanism and 2 butt plates which are clamped against the extractor’s shell, the massive power of 60.000kgf is compensated against the shell flange and not against the structure.When using the Peinemann bundle extractor it is not necessary to dismantle the tension arms from the superstructure in order to load or unload the bundle on/off the extractor. Needless to say this feature saves a tremendous amount of time during a large turnaround.

With over 25 years of experience in the field of bundle extracting, you can always count on Peinemann as your partner. In case you might want to hire the equipment including operators to try it out first, Peinemann can take care of that too.
